Google Docs Update Action

Overview

This guide demonstrates how to create an execution action that enables Glean Assistant to update Google Documents. You'll learn how to configure the OpenAPI specification, set up OAuth authentication, and deploy the action for use within your organization.

This is an execution action that performs operations directly within Glean by making API calls to Google Docs on behalf of users.

Prerequisites

Before proceeding, ensure you have:

• Admin or app developer access to Glean
• Access to Google Cloud Console
• Familiarity with OAuth 2.0 authentication flows

Implementation Guide

1

Action Manifest Configuration

Navigate to Admin console > Platform > Actions and create a new action from scratch.

Basic Information Configuration

Configure the following settings:

• Display name: Choose a descriptive name (e.g., "Google Docs Updater")
• Description: Explain the action's functionality
• Unique identifier: Set a unique ID (e.g., "googleDocsUpdate")
• Action type: Select "Action" since this will modify documents

Trigger Condition Setup

In the trigger condition, provide comprehensive guidance for when Glean Assistant should use this action. Include:

• Specific use cases that should trigger the action
• Examples of appropriate user queries
• Cases where the action should not be used

2

API Specification Development

The first step involves creating a properly formatted OpenAPI specification that defines how Glean Assistant will interact with the Google Docs API. We'll use the following endpoint:

POST https://docs.googleapis.com/v1/documents/{`{documentId}`}:batchUpdate

While Google doesn't typically provide OpenAPI specs publicly, you can construct one using their documentation or reference third-party sources.

Here's the complete OpenAPI specification:

Click to expand the full OpenAPI specification

openapi: 3.0.0
servers:
- url: 'https://docs.googleapis.com/'
info:
description: Writes Google Docs documents.
title: Google Docs API
version: v1
paths:
'/v1/documents/{documentId}:batchUpdate':
  post:
    description: >-
      Applies one or more updates to the document. Each request is validated
      before being applied. If any request is not valid, then the entire
      request will fail and nothing will be applied. The updates in your request
      are guaranteed to be applied together atomically.
    operationId: docs.documents.batchUpdate
    parameters:
      - description: >-
          The ID of the document to update. Use glean search to find
          the relevant document. The documentId usually exists in the
          url of the doc. The syntax of URL (with documentId) is like:
          https://docs.google.com/document/d/<documentId>/edit
          Extract out the documentId from the URL.
        in: path
        name: documentId
        required: true
        schema:
          type: string
    requestBody:
      content:
        application/json:
          schema:
            type: object
            properties:
              requests:
                type: array
                maxItems: 2
                items:
                  type: object
                  properties:
                    insertText:
                      description: >-
                        Inserts text at the specified location. Always use this
                        operation except when text deletion or text replacement
                        is required.
                      type: object
                      properties:
                        location:
                          type: object
                          properties:
                            index:
                              description: >-
                                The zero-based index, in UTF-16 code units.
                                Strictly use a value of 1 and nothing else.
                              format: int32
                              type: integer
                        text:
                          description: >-
                            The text to be inserted. This is the most important field
                            for this text inserting operation. Insert a neatly
                            formatted text consisting of multiple paragraphs. Whenever
                            required, always start with a new line for paragraphs,
                            tables, lists for neatness.
                          type: string
                    replaceAllText:
                      description: >-
                        Replaces all instances of the specified text.
                        Always use this operation when text deletion
                        or text replacement is required.
                      type: object
                      properties:
                        containsText:
                          type: object
                          properties:
                            matchCase:
                              description: >-
                                Indicates whether the search should respect
                                case: - `True`: the search is case sensitive.
                                - `False`: the search is case insensitive.
                              type: boolean
                              title: Do you want to match case
                            text:
                              description: The text to search for in the document.
                              type: string
                        replaceText:
                          description: >-
                            The text that will replace the
                            matched text. Keep empty for deletion.
                          type: string
    responses:
      '200':
        description: Successful response

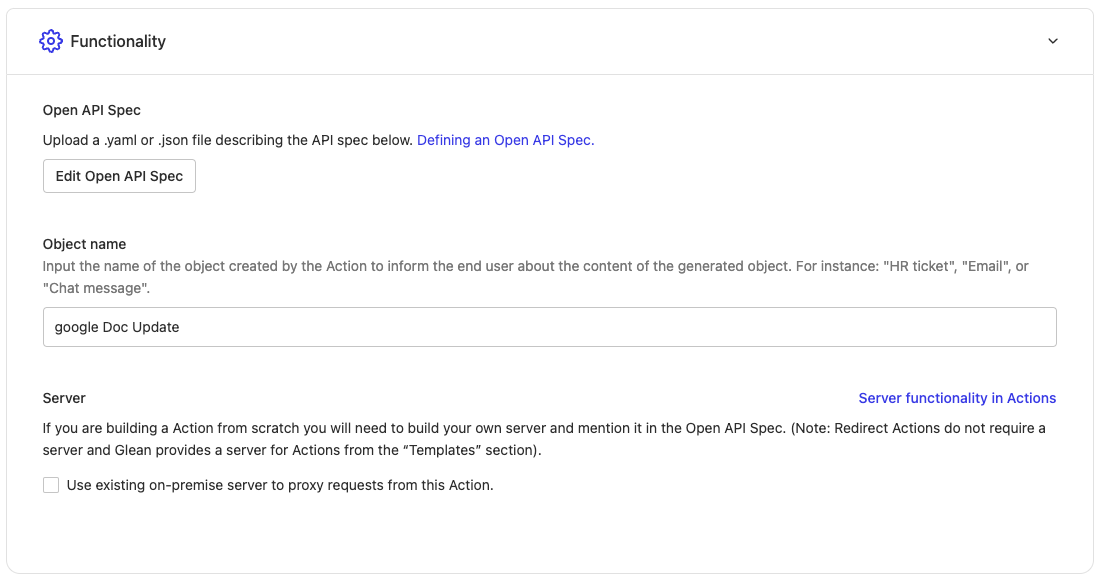

Functionality Configuration

Paste the OpenAPI specification you prepared above. Since we're using Google's API directly, leave the "Use existing on-premise server" option unchecked.

3

Authentication Setup

The action requires OAuth 2.0 authentication to interact with Google Docs securely.

Google Cloud Console Configuration

1. Visit the Google Cloud Console Credentials page

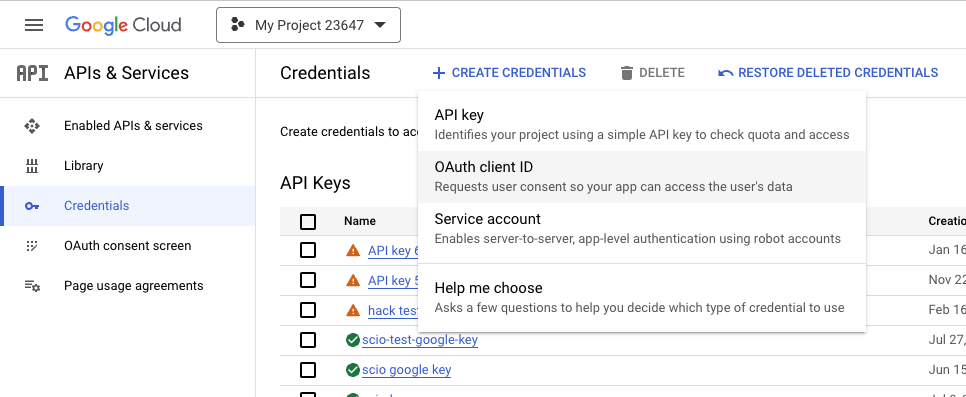

2. Create new OAuth 2.0 credentials:

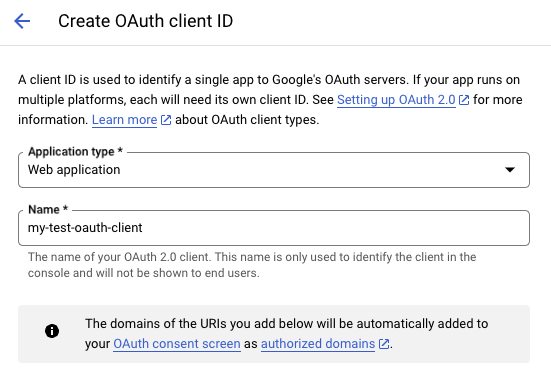

3. Select "Web Application" as the application type:



Redirect URI Configuration

Add the following redirect URI to your OAuth client configuration (Note your instance name is typically the email domain without the TLD):

https://{instance-name}-be.glean.com/tools/oauth/verify_code/{your-action-unique-identifier-name}

The unique identifier in the redirect URI must match exactly with the identifier you set when creating the action, including case sensitivity.

OAuth Settings in Glean

Configure these OAuth settings in the Authentication section:

Client URL: https://accounts.google.com/o/oauth2/auth?prompt=consent&access_type=offline
Authorization URL: https://accounts.google.com/o/oauth2/token
Scopes: https://www.googleapis.com/auth/documents

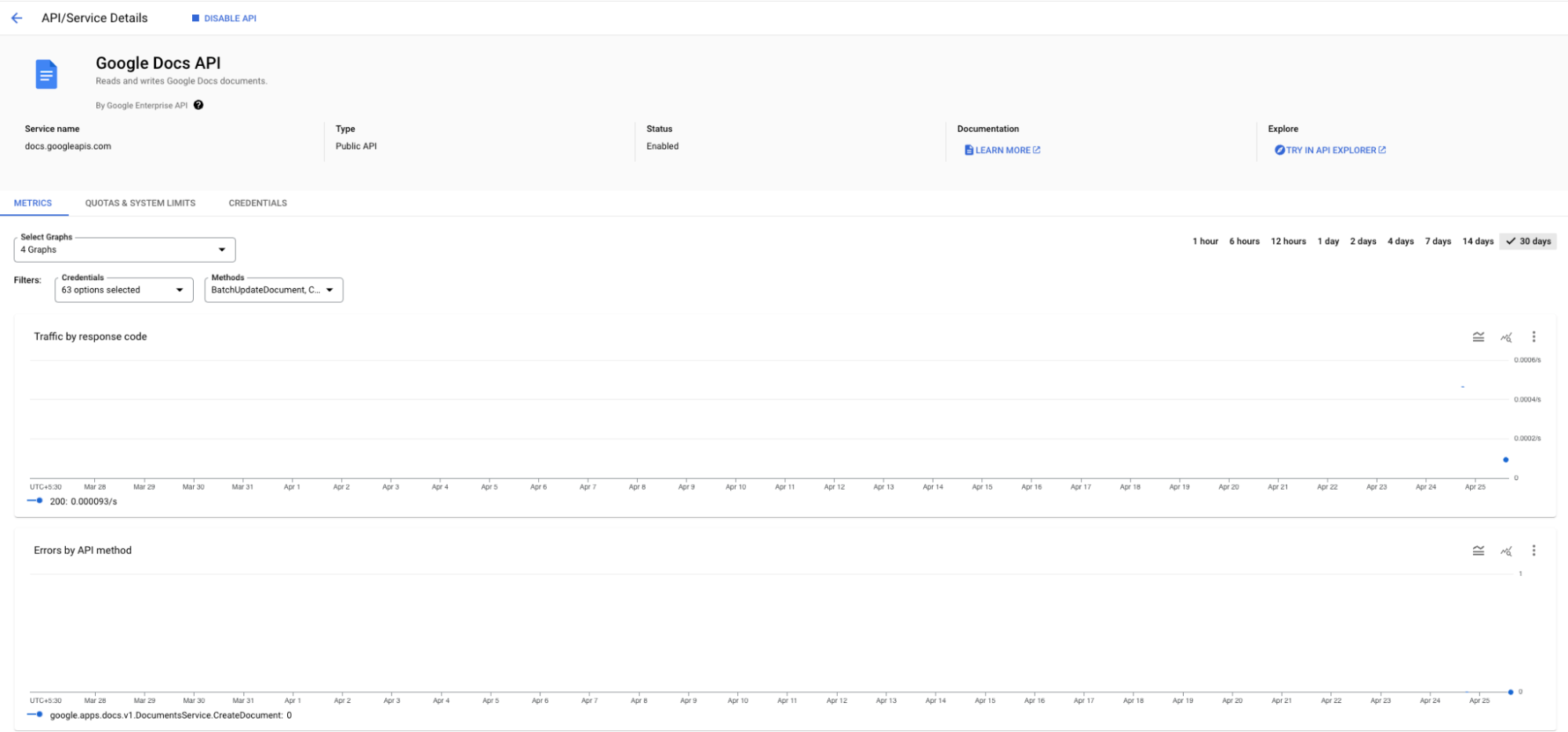

Enable Google Docs API

1. Navigate to the Google Cloud Console

2. Enable the Google Docs API for your project:



4

Testing and Deployment

After configuration, thoroughly test the action before deployment.

Testing Process

1. Click the testing URL provided after saving the action

2. Issue test queries to verify proper triggering

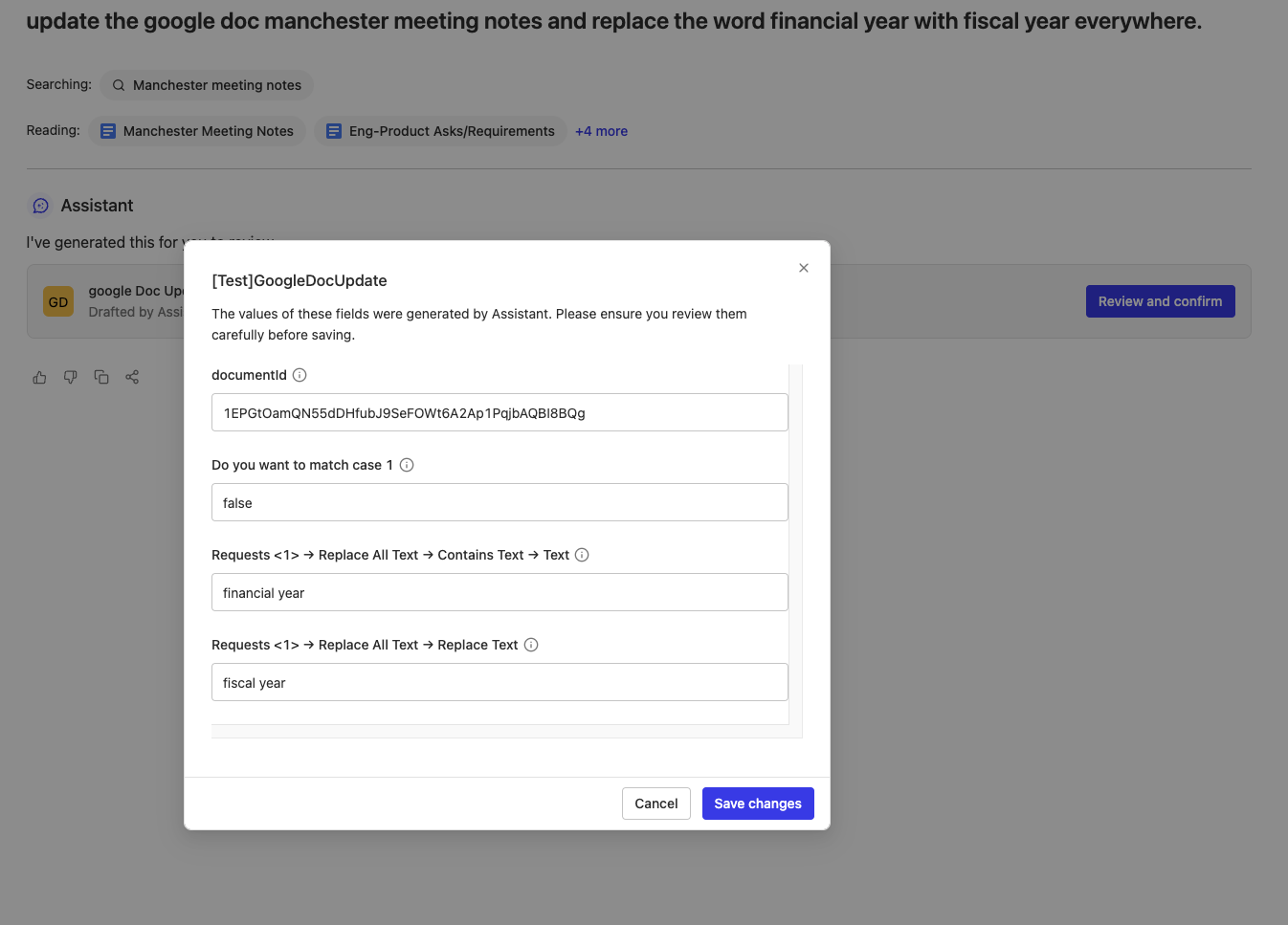

3. Use the "Review and confirm" interface:



4. Verify document changes:

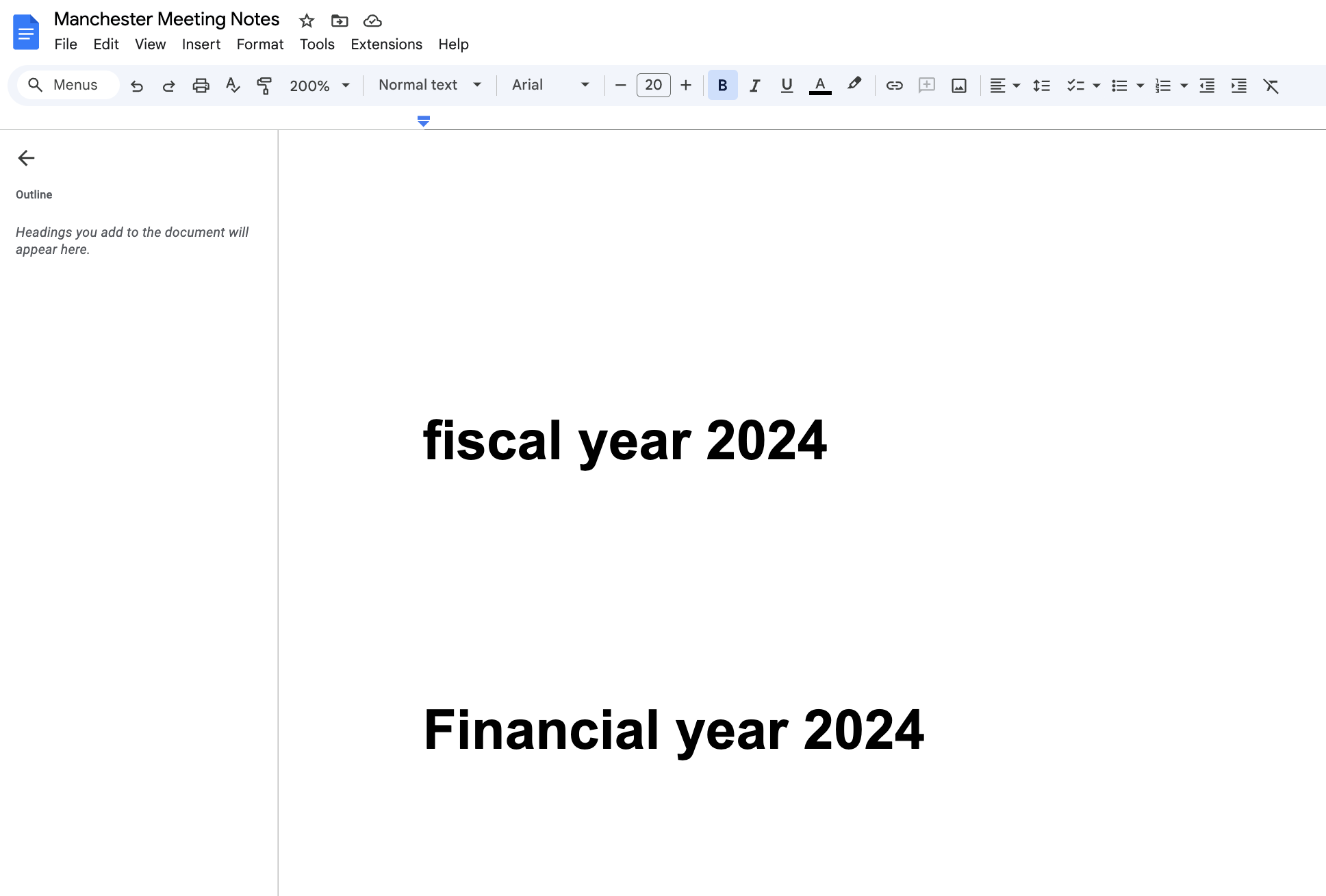

   Before changes:

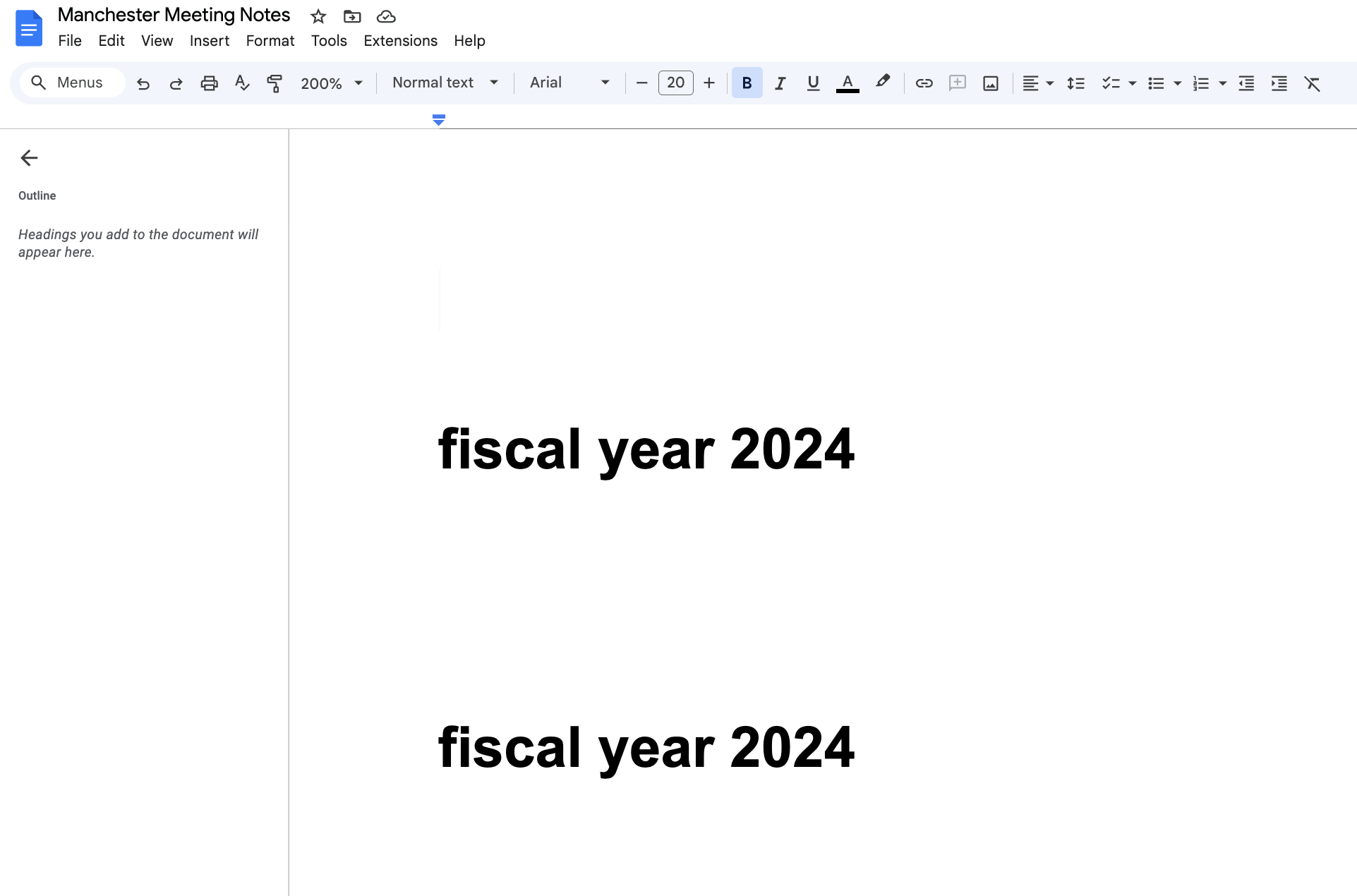

   After changes:

Deployment Configuration

Deploy the action through the deploy tab:

You can:

• Enable the action for all teammates
• Restrict access to specific teammates
• Configure deployment settings for Chat or AI Apps integration

Best Practices

API Configuration Best Practices

When preparing your OpenAPI specification for Google Docs integration:

Field Descriptions

The quality of field descriptions significantly impacts Glean Assistant's ability to populate them correctly. Consider these guidelines:

• Make descriptions actionable and specific
• Include examples of valid values
• Explain the business context of each field
• Clarify relationships between fields

Schema Structure

Your schema structure affects how Glean Assistant interprets the API:

• Keep the schema as flat as possible
• Use meaningful field names that reflect their purpose
• Leverage built-in formats (like date-time) where applicable
• Include proper type constraints and validations

Authentication Considerations

OAuth Configuration

Important considerations for OAuth setup:

• Always use access_type=offline to enable refresh tokens
• Include appropriate error handling for token expiration
• Consider implementing token rotation for security
• Monitor token usage and implement proper logging

Performance Optimization

User Experience

Optimize the action for user interaction:

• Provide clear feedback when the action is processing
• Include meaningful error messages
• Allow users to preview changes before applying them
• Maintain consistent behavior across different document types

Efficient Operations

Ensure efficient operation:

• Batch related operations when possible
• Implement appropriate timeouts
• Cache frequently used document metadata
• Monitor action execution times

Error Handling

When working with the Google Docs API:

Document Operations

Choose the right operation type for your use case:

• Use insertText for adding new content without affecting existing text
• Use replaceAllText when you need to modify existing content
• Consider using index: 1 for insertions to maintain consistent behavior
• Handle formatting through plain text markers (like asterisks for bullets)

Common Issues

Common issues to watch for:

• Document permissions mismatches
• Rate limiting constraints
• Invalid document IDs
• Concurrent modification conflicts

Common Pitfalls to Avoid

warning

Watch out for these common implementation mistakes:

1. Document ID Handling

   • Not properly extracting IDs from URLs
   • Failing to validate ID format
   • Not handling shared drive documents correctly

2. Permission Issues

   • Insufficient OAuth scopes
   • Missing document-level permissions
   • Incorrect service account configuration

3. Content Formatting

   • Ignoring existing document structure
   • Not handling special characters properly
   • Incorrect handling of line breaks and paragraphs

Troubleshooting

If you encounter issues during setup or execution:

1. Verify OAuth Configuration

   • Check OAuth credentials are correctly configured
   • Ensure the Google Docs API is enabled
   • Validate that the redirect URI exactly matches your action's configuration

2. Check Permissions

   • Verify the user has appropriate permissions in both Glean and Google Docs
   • Confirm document access permissions
   • Check API quota and rate limits

3. Debug Implementation

   • Validate document ID extraction and formatting
   • Test with different document types and sizes
   • Monitor API response codes and error messages

Next Steps

After successful implementation, consider:

• Documentation: Creating documentation for end users
• Monitoring: Setting up monitoring for action usage
• Credentials: Establishing a process for maintaining OAuth credentials
• Reviews: Planning for periodic reviews of API specifications as the Google Docs API evolves
• Enhancements: Expanding functionality based on user feedback
